YSVF3-J-333 Electromagnetic Stirring Control System

Electromagnetic stirring (EMS for short) is a new technology that leverages the electromagnetic forces induced in the liquid-phase zone of continuous casting billets to intensify the movement of molten steel, thereby improving the flow, heat transfer, and uniform distribution of alloy elements during solidification and enhancing the internal quality of the billet. This technology plays a crucial role in improving steel quality, enabling high-speed continuous casting, expanding the range of steel grades that can be continuously cast, and relaxing the process conditions for continuous casting.

Case Details


Electromagnetic stirring complete set of equipment

I. Basic Principles

Electromagnetic stirring (EMS for short) is a new technology that leverages the electromagnetic forces induced in the liquid-phase zone of continuous casting billets to intensify the movement of molten steel, thereby improving the flow, heat transfer, and uniform distribution of alloy elements during solidification and enhancing the internal quality of the billet. This technology plays a crucial role in improving steel quality, enabling high-speed continuous casting, expanding the range of steel grades that can be continuously cast, and relaxing the process conditions required for continuous casting.
The operating principle of electromagnetic stirring is similar to that of a solid-rotor induction motor. Specifically, the alternating magnetic field generated by the stirrer penetrates into the liquid zone of the casting billet and induces currents within it. These induced currents interact with the magnetic field generated by the stirrer, producing electromagnetic forces that drive the movement of the molten steel. The electromagnetic stirrer functions like the stator of a solid-rotor induction motor, while the molten steel acts as the rotor of the motor.

2. Composition of the Electromagnetic Stirring Complete Set of Equipment

The complete set of electromagnetic stirring equipment consists of an electromagnetic stirrer, a variable-frequency power supply, control equipment, and a cooling water treatment system.

3. Combination Methods for Electromagnetic Stirring Complete Sets of Equipment





. IV. Metallurgical Effects

·Electromagnetic stirring can refine the internal microstructure of billets, improve the surface quality of cast billets, promote the flotation of non-metallic inclusions in the molten steel, reduce central segregation and central porosity, and increase the proportion of equiaxed crystals.

·Different installation positions of electromagnetic stirrers yield different metallurgical effects. The primary metallurgical effects of these stirrers in improving the quality of cast billets are shown in the table.

5. Classification of electromagnetic stirrers

  • Mold electromagnetic stirring

Electromagnetic stirrers for crystallizers are classified into built-in and external types according to their relative positions with respect to the crystallizer.

  • Built-in electromagnetic stirrer

The built-in electromagnetic stirrer is installed inside the crystallizer’s water tank. Its features include: the induction coil is closely positioned adjacent to the copper sleeve and water jacket of the casting billet, providing excellent stirring performance; it requires a small power capacity and has low operating costs; the crystallizer is cooled by water, eliminating the need for a separate cooling water system; each crystallizer needs to be equipped with a stirring coil, resulting in a large number of spare parts required.

Built-in crystallization-section electromagnetic stirrer



  • External electromagnetic stirrer

The external electromagnetic stirrer is installed around the outside of the crystallizer.

(1) Direct Water-Immersion Cooling Type Characteristics: Convenient for replacing the crystallizer; relatively high energy consumption and operating costs; requires few spare parts; uses crystallization water for cooling, eliminating the need for a separate cooling water system.

(2) Characteristics of the internal-cooling type hollow copper tube: Convenient for replacing the crystallizer; high cooling efficiency due to internal cooling in the hollow copper tube; requires fewer spare parts; relatively high energy consumption and operating costs; necessitates a separate cooling water treatment system.



External Crystallization Section Electromagnetic Stirrer

Electromagnetic Stirrer for Secondary Cooling Zone

The electromagnetic stirrer (SEMS) is installed in the secondary cooling zone of continuous casting machines. For billets, the electromagnetic stirring in the secondary cooling zone typically employs a unidirectional traveling-wave magnetic field configuration, which is mounted on the inner arc side of the cast slab. Alternatively, a rotating magnetic field configuration may also be used. For slabs, the electromagnetic stirring in the secondary cooling zone usually adopts a bidirectional traveling-wave magnetic field configuration.

Field linear mixer

Secondary Cooling Zone Slab Electromagnetic Stirrer

Electromagnetic Stirrer for the Solidification End-Point

Electromagnetic stirrers installed at the solidification end of continuous casting machines all employ rotating magnetic field types. Depending on the cross-section of the cast billet, either low-frequency or power-frequency excitation can be used.

Electromagnetic Stirrer for the Solidification End-Point

Combination methods of electromagnetic stirrers

Based on the configuration of the magnetic electromagnetic stirrer used in the Genzhezhou River, its combination method is...



Combination method

Applicable steel grades

Billet type

Note

M+F---EMS

Medium- and high-carbon steels (including alloy steels and bearing steels)

Billet

The currently widely used method

M+S---EMS

Medium- and high-carbon steels (including alloy steels and spring steels)

Billet



S+F---EMS

Medium- and carbon steel

Large-section billet



M+S+F---EMS

Ultra-high carbon steel

Small billet





Model Description

Model and Meaning of Electromagnetic Stirrers (EMS)

Parameters required when placing an order
The selection of an electromagnetic stirrer is generally determined by the following conditions:
△ Continuous Casting Machine Model
△Continuous Casting Steel Grades
△ Continuous casting billet cross-section
△ Installation Area
△ Built-in type must provide the crystallizer tank dimensions.
△ The external type provides crystallizer dimensions and flow spacing.
△Water jacket dimensions
△ Copper pipe dimensions and thickness

Electromagnetic Stirring Control System

Currently, the electromagnetic stirring control systems produced by our company are mainly used in two major categories: one is the three-phase electromagnetic stirring control system for continuous casting of round and square billets and slabs, and the other is the two-phase orthogonal electromagnetic stirring control system for tundishes.
I. Three-phase Electromagnetic Stirring (EMS) Control System for Continuous Casting of Billets and Slabs
The general N-stream M-section electromagnetic stirring control system for continuous casting consists of a monitoring system, a process control system, and NxM sets of three-phase low-frequency current systems (YSVF3), among other components. The low-frequency power supply outputs a three-phase low-frequency sinusoidal current.
II. Two-phase orthogonal electromagnetic stirring control system for tundishes
The tundish electromagnetic stirring control system mainly consists of a monitoring system, a process control system, and a two-phase low-frequency power supply system (YSVF2). The output of its low-frequency power supply is a pair of phase-orthogonal low-frequency sinusoidal currents.

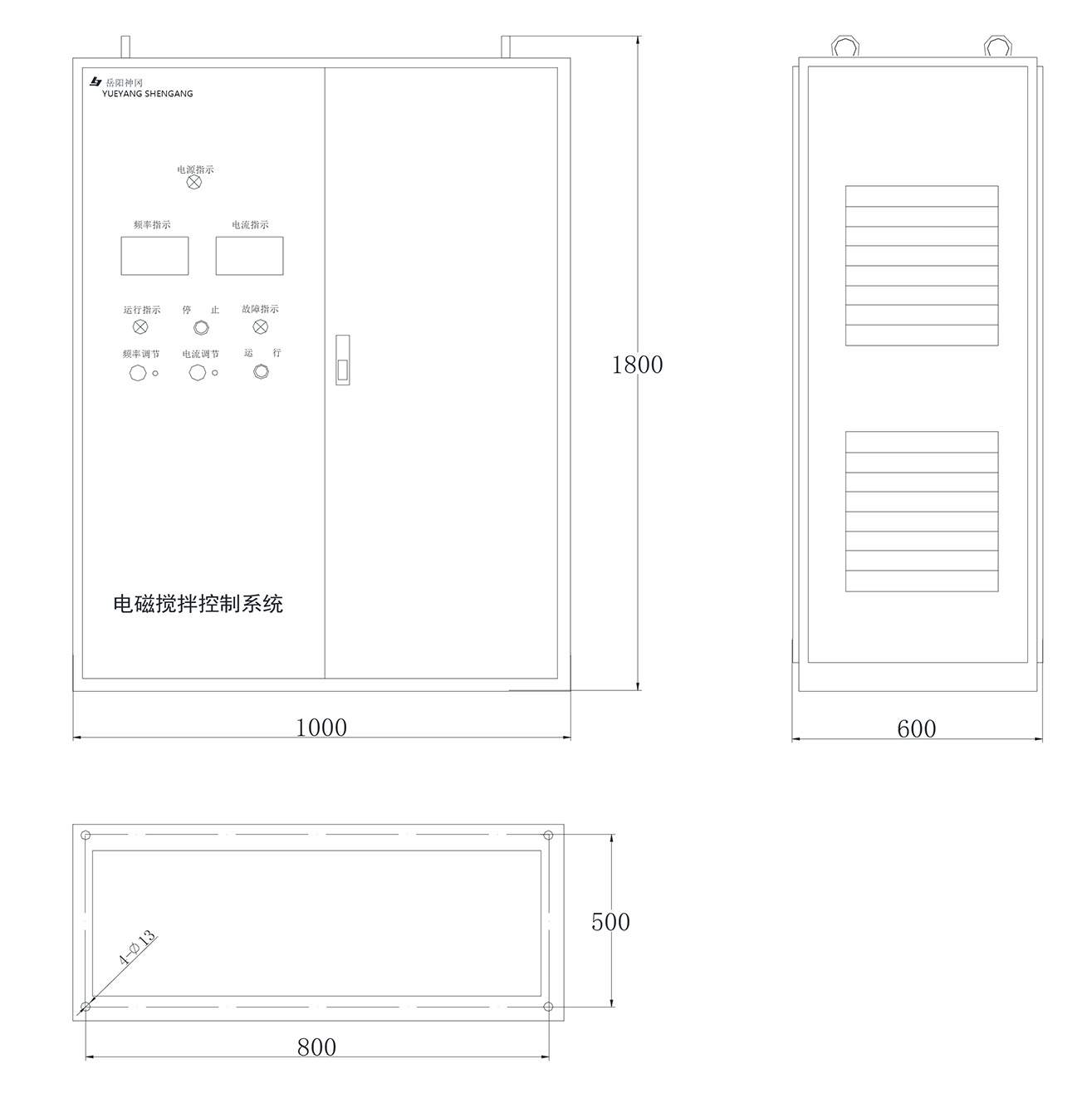

III. Block Diagram and External View of the Electromagnetic Stirring Control System

IV. Main Features of the System

1. It adopts the latest advancements in power electronics technology and microcomputer control technology currently available internationally, featuring advanced technology, excellent performance, simple operation, convenient maintenance, and a long service life.
2. Equipped with two operation locations: remote and on-site.
3. Equipped with manual and automatic operation functions.
4. Three operating modes—continuous, intermittent, and alternating—can be adopted.
5. Equipped with control functions for three magnetic field patterns: rotating, traveling wave, and helical.
6. The current and frequency of each low-frequency power supply system are independently adjustable without interfering with each other, and the control method is current closed-loop control.
7. The system features sophisticated electromagnetic compatibility design and robust protection functions, giving it strong anti-interference capability and ensuring stable and reliable operation.
8. Possesses excellent network communication capabilities and is highly flexible.
9. The monitoring system offers two types: a standard operating system with an industrial control interface, and a standard operator panel type. The standard operator panel type is slightly less expensive than the full industrial control interface type; users can select based on their specific needs.
10. Since the main frequency conversion circuit in the low-frequency power supply device adopts an AC-DC-AC voltage-source frequency conversion and voltage regulation approach, the frequency conversion and voltage regulation are implemented using DSP or a single-chip microcomputer to achieve high-carrier SPWM modulation. The inverter section employs fully controlled IGBT power modules or IPM intelligent power modules, configured in either three-phase or two-phase full-bridge topologies. This design results in a compact device with a high carrier frequency, excellent output waveform quality, and a high power factor. The device can deliver a maximum output current of 1200 A, with an adjustable output frequency ranging from 2 to 30 Hz, and a maximum output voltage of 460 V.
11. The three-phase low-frequency power supply system comes in two types: a domestically produced model and a variable-voltage, variable-frequency (VVVF) model that partially uses an imported frequency converter specifically designed for electromagnetic stirring. The domestically produced model is more cost-effective than the VVVF model, which uses an imported frequency converter core specially designed for electromagnetic stirring. Users can select the appropriate model based on their specific requirements.

V. Model Description of the Electromagnetic Stirring Control System

Note: The rated output capacity refers to the output capacity of a single low-frequency power supply system.

VI. Selection Instructions

The selection of an electromagnetic stirring control system is generally determined by the following factors:
1. Current, voltage, frequency, capacity, and number of phases of the electromagnetic stirring coil.
2. The number of strands in the continuous casting machine or the number of tundishes.
3. The number of physical quantity parameters that need to be detected and monitored in the water system.
4. The number of physical parameter quantities that require interlocks at the user’s site.
5. Other specific requirements from the user.

Technical Parameters of Continuous Casting Electromagnetic Stirring Complete Set of Equipment



Model

Installation location

Magnetic field form

Maximum Stirring Cross-Section (mm²)

Capacity

(KVA)

Current

(A)

Frequency

(HZ)

Maximum external dimensions (mm²)

Self-weight

(KG)

Power supply equipment配套

Cooling method



DJZR-10T

Tundish exterior



Rotating magnetic field

10T centrifuge

Tundish



540



750

2-10

Two-phase orthogonal



Φ1627x1170



3200



YSVF2-J-600





DJMR-2S32NS





-



Conclusion



Crystal



device



Inside



Rotating magnetic field



280x320



260



500



2-10



Φ820x420



540

YSVF3-J-300

















Direct water cooling from external sources



DJMR-2625NS



Rotating magnetic field



250x250



220



400



3-12



Φ700x420



400

YSVF3-J-260





DJMR-2222NS



Rotating magnetic field



220x220



180



400



3-12



Φ660x400



360

YSVF3-J-220





DJMR-2020NS



Rotating magnetic field



200x200



150



400



3-12



Φ660x400



360

YSVF3-J-200



DJMR-1616NS



Rotating magnetic field



160x160



130



350



3-12



Φ670x476



320

YSVF3-J-200



DJMR-1515NS

Rotating magnetic field



150x150



140



300



3-11

Φ580x500



300

YSVF3-J-180



DJMR-2838WC















Conclusion



Crystal



device

Outside

Rotating magnetic field



280x380



350



550



2-9



Φ1240x500

1600

YSVF3-J-420











Pure water internal cooling

DJMR-2528WC

Rotating magnetic field



250x280



260



360



2-9



Φ1120x470



110

YSVF3-J-280



DJMR-2222WC

Rotating magnetic field



220x220



240



360



2-10



Φ900x480



850

YSVF3-J-280



DJMR-2020WS



Rotating magnetic field



200x200



200



360



2-12



Φ830x350



680

YSVF3-J-220



DJMR-2838WS



Rotating magnetic field



280x380



400



600



2-9



Φ1270x680



1800

YSVF3-J-490













Direct water cooling from external sources

DJMR-2424WS

Rotating magnetic field



200x200





320



500



2-10



Φ920x450



850

YSVF3-J-350



DJMR-1822WS

Rotating magnetic field



180x220



300



500



2-10



Φ880x480



980

YSVF3-J-350



DJMR-1515WS

Rotating magnetic field



150x150



280



500



3-12



Φ830x530



880

YSVF3-J-300



DJST-19030ZC







Two

Cold

district

Traveling wave magnetic field



1900x300

250











4-12



1610x1610x500



1500x2

YSVF3-J-800





Pure water internal cooling

DJST-2828ZS

Traveling wave magnetic field



280x280



430



1000



50



1160x624x563



630

YSVF2-J-500

Direct water cooling from external sources

DJST-2020ZY

Traveling wave magnetic field



200x200



130



180



50

760x600x340



450



YSVF2-J-200

Oil-water secondary cooling

DJFR-2528WC



Rotating magnetic field



250x280

350

600



6-15

Φ820x550

930

YSVF3-J-420









Pure water

Internal cooling

DJFR-2222WC

Rotating magnetic field



220x220



300



500



6-15

Φ730x550

720

YSVF3-J-350



DJFR-2020WC

Rotating magnetic field

200x200



300



500



6-15

Φ780x520



YSVF3-J-350





Technical Parameters of Continuous Casting Electromagnetic Stirring Device



Model

Installation location

Magnetic field form

Maximum Stirring Cross-Section (mm²)

Capacity

(KVA)

Current

(A)

Frequency

(HZ)

Maximum external dimensions (mm²)

Self-weight

(KG)

Power supply equipment配套

Cooling method



DJZR-10T

Tundish exterior



Rotating magnetic field

10T centrifuge

Tundish



540



750

2-10

Two-phase orthogonal



Φ1627x1170



3200



YSVF2-J-600





DJMR-2S32NS





-



Conclusion



Crystal



device



Inside



Rotating magnetic field



280x320



260



500



2-10



Φ820x420



540

YSVF3-J-300















Direct water cooling from external sources

YSVF3-J1-300



DJMR-2625NS



Rotating magnetic field



250x250



220



400



3-12



Φ700x420



400

YSVF3-J-260

YSVF3-J1-260



DJMR-2222NS



Rotating magnetic field



220x220



180



400



3-12



Φ660x400



360

YSVF3-J-220

YSVF3-J1-220



DJMR-2020NS



Rotating magnetic field



200x200



150



400



3-12



Φ660x400



360

YSVF3-J-200

YSVF3-J1-200

DJMR-1616NS



Rotating magnetic field



160x160



130



350



3-12



Φ670x476



320

YSVF3-J-200

YSVF3-J1-200

DJMR-1515NS

Rotating magnetic field



150x150



140



300



3-11

Φ580x500



300

YSVF3-J-180

YSVF3-J1-180

DJMR-2838WC















Conclusion



Crystal



device

Outside

Rotating magnetic field



280x380



350



550



2-9



Φ1240x500

1600

YSVF3-J-420









Pure water internal cooling

YSVF3-J1-420

DJMR-2528WC

Rotating magnetic field



250x280



260



360



2-9



Φ1120x470



110

YSVF3-J-280

YSVF3-J1-280

DJMR-2222WC

Rotating magnetic field



220x220



240



360



2-10



Φ900x480



850

YSVF3-J-280

YSVF3-J1-280

DJMR-2020WS



Rotating magnetic field



200x200



200



360



2-12



Φ830x350



680

YSVF3-J-220

YSVF3-J1-220

DJMR-2838WS



Rotating magnetic field



280x380



400



600



2-9



Φ1270x680



1800

YSVF3-J-490











Direct water cooling from external sources

YSVF3-J1-420

DJMR-2424WS

Rotating magnetic field









320



500



2-10



Φ920x450



850

YSVF3-J-350

YSVF3-J-350

DJMR-1822WS

Rotating magnetic field



180x220



300



500



2-10



Φ880x480



980

YSVF3-J-350

YSVF3-J1-350

DJMR-1515WS

Rotating magnetic field



150x150



280



500



3-12



Φ830x530



880

YSVF3-J-300

YSVF3-J1-300

DJST-19030ZC







Two



Cold zone

Traveling wave magnetic field



1900x300















4-12



1610x1610x500



1500x2

YSVF3-J-800



Pure water internal cooling

YSVF3-J1-800

DJST-17025ZC

Traveling wave magnetic field

















6-20

1610x600x500



1300x2

YSVF3-J-800

YSVF3-J1-800

DJST-2828ZS

Traveling wave magnetic field



280x280



430



1000



50



1160x624x563

630

YSGK-J-500

Direct water cooling from external sources

DJST-2020ZY

Traveling wave magnetic field



200x200



130



180



50

760x600x340



450



YSGK-J-200

Oil-water secondary cooling

DJFR-2528WC



Rotating magnetic field



250x280

350

600



6-15

Φ820x550

930

YSVF3-J-420







Pure water

Internal cooling

YSVF3-J1-420

DJFR-2222WC

Rotating magnetic field



220x220



300



500



6-15

Φ730x550

720

YSVF3-J-350

YSVF3-J1-350

DJFR-2020WC

Rotating magnetic field

200x200



300



500



6-15

Φ780x520

678

YSVF3-J-350

YSVF3-J1-350



Key words:

Electromagnetic equipment manufacturing, multi-function lifting electromagnet, special lifting electromagnet, multi-purpose lifting electromagnet, permanent magnet coupling hysteresis head

RELATED PRODUCTS

MW5 Series

This series is designed for lifting and handling cast iron ingots, steel balls, pig iron blocks, machined chips; return materials, iron concentrate powder, cut-off ends; packaged scrap steel, and more. The excitation methods available include: rated voltage DC 220V mode; and strong excitation mode—over-excitation mode.

MW61 Series

This series features oval-shaped lifting electromagnets, primarily used for efficiently loading and unloading scrap steel in narrow vehicle compartments. Customization is available based on the specific dimensions of the vehicle compartment.

MW22 Series

This series features the most widely used rectangular electromagnets, primarily suited for lifting billets, ingots, and large initial rolling billets. They can also be used for lifting round billets and structural steel. Different magnetic circuit designs are employed to accommodate various types of steel.

Address: Liji Avenue, Junshan Industrial Park, Yueyang City, Hunan Province

Telephone: +8613907300172

Fax: 0730-8647119
