MW35 Series
Primarily used for lifting large round billets, large steel pipes, and also suitable for lifting ultra-high-temperature square billets, steel ingots, large initial rolling billets, and structural steel. Featuring a special magnetic circuit design, it boasts deep magnetic penetration.
Classification:
E-mail：hnyysg0730@163.com
Case Details
Primarily suitable for lifting large round billets, large steel pipes, and also applicable to lifting ultra-high-temperature square billets, steel ingots, large initial rolling billets, and structural steel. Featuring a specially designed magnetic circuit, it boasts exceptional magnetic penetration depth.

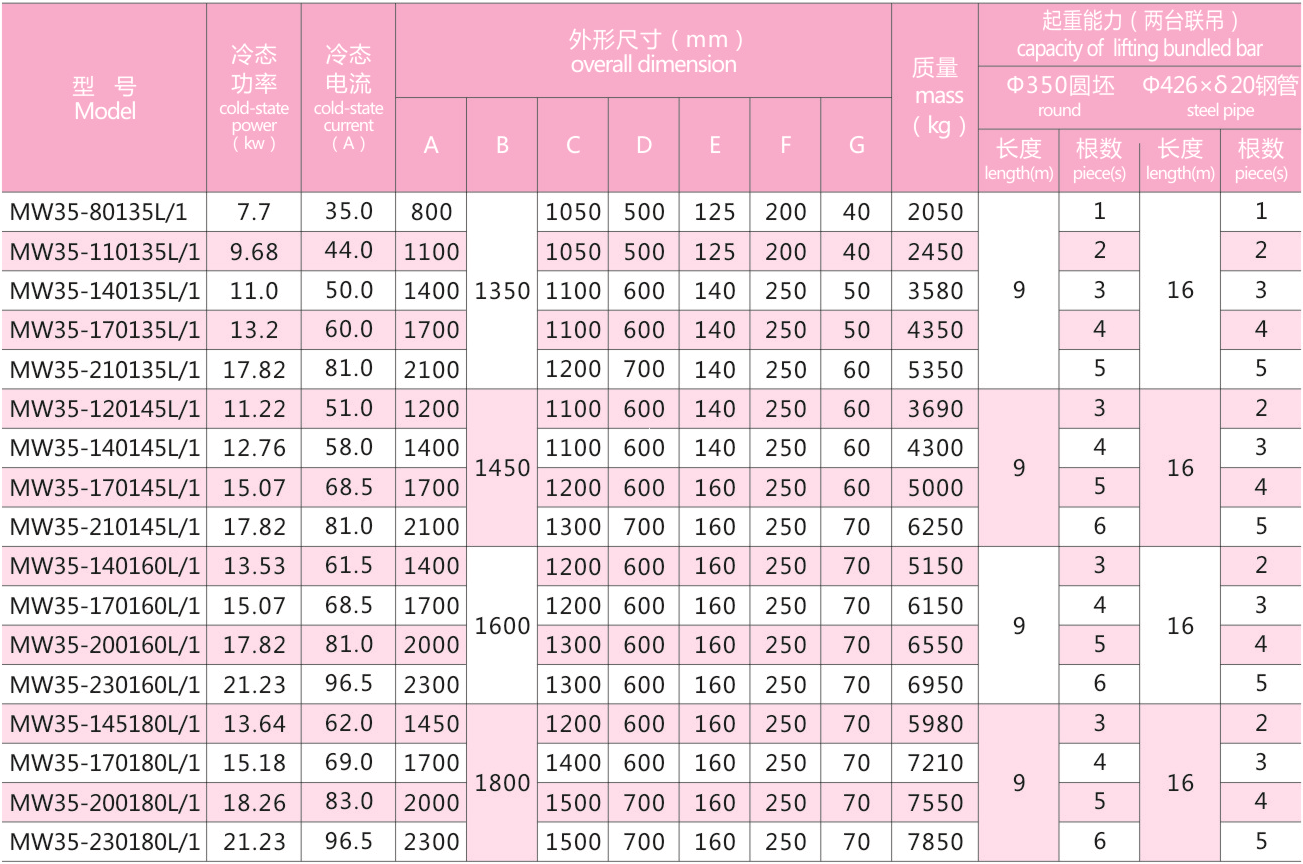

MW35 Normal Temperature Type
Main technical parameters (rated voltage DC-220V, duty cycle TD-60%) [for reference only]
Selection Notes: 1) The numbers in the table represent the actual number of items to be lifted; the theoretical number should include one additional item. 2) Depending on the billet diameter, our technical staff can select specifications not listed in the table for you.

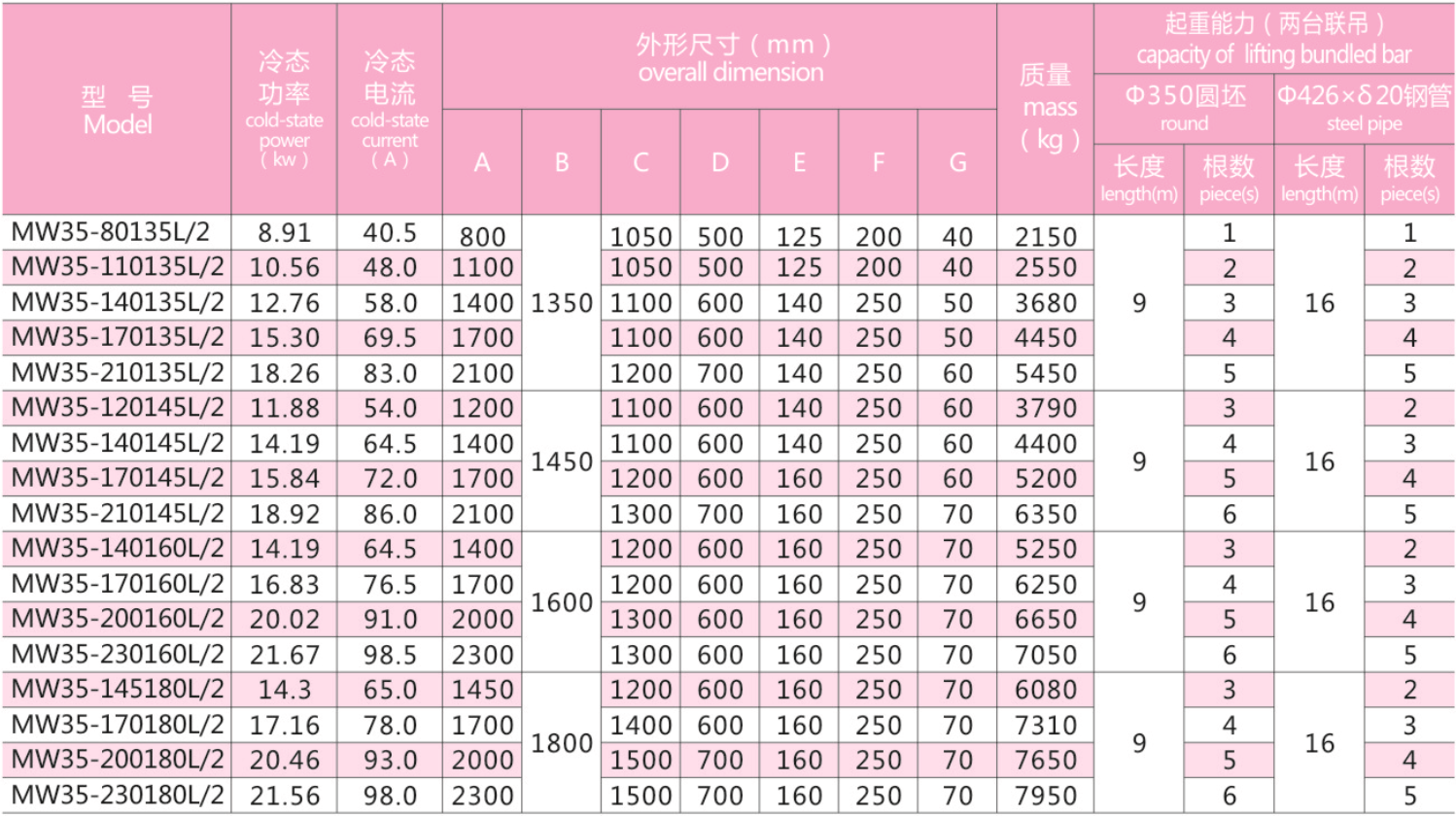

MW35 High-Temperature Type
Main technical parameters (rated voltage DC-220V, duty cycle TD-60%) [for reference only]

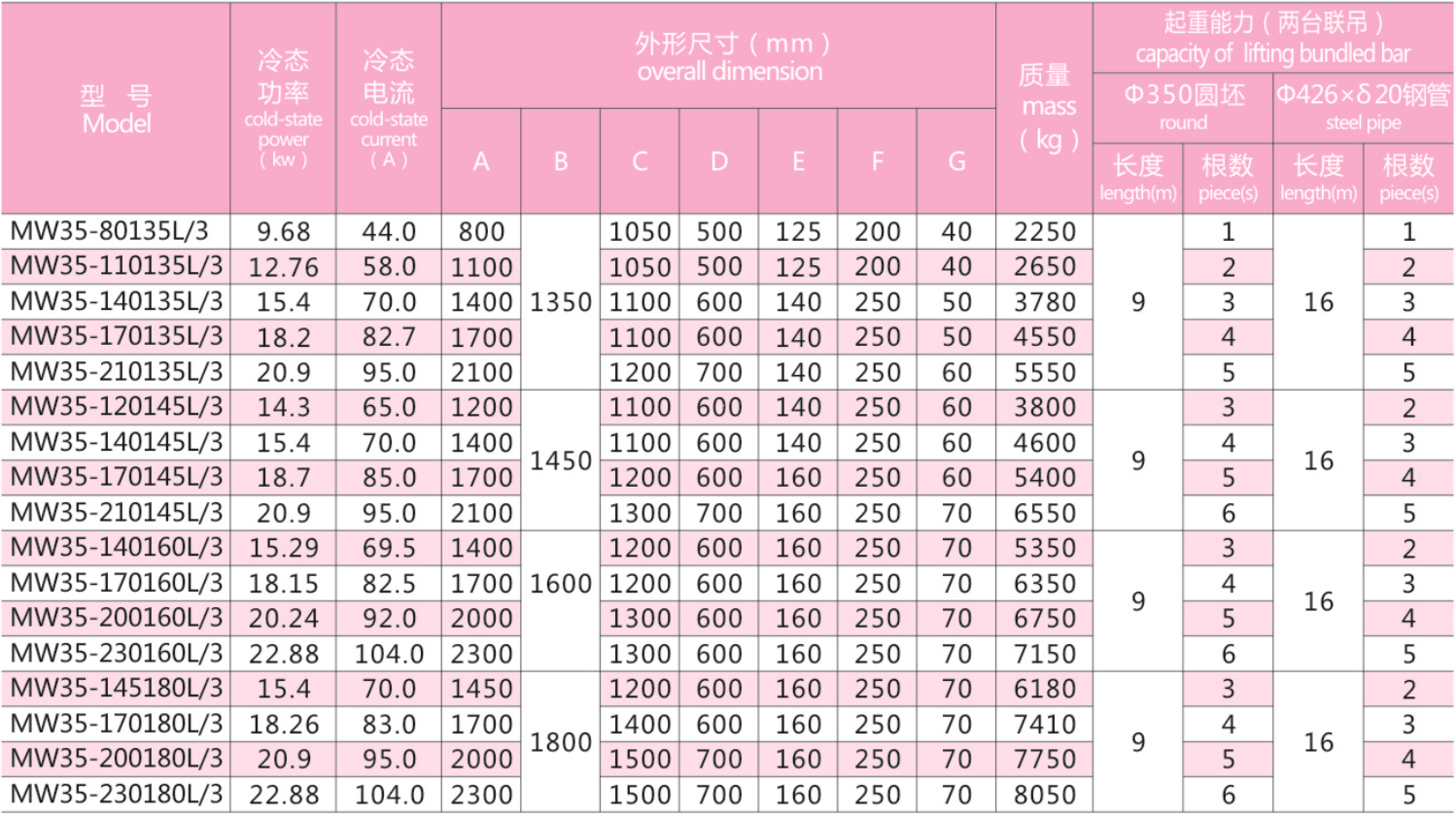

MW35 Ultra-High Temperature Type
Main technical parameters (rated voltage DC-220V, duty cycle TD-60%) [for reference only]
