MW12 Series
The MW12 series electromagnets feature a unique dual-wire winding magnetic circuit design, offering excellent heat dissipation, deep magnetic penetration, and the ability to pass through multiple air gaps. They can lift bar stock, flat bars, angle steel, and other materials that are either unbound or only lightly bundled. These magnets effectively address the issue of excessive deflection commonly encountered when lifting small round bars and threaded steel bars. Available in both ambient-temperature and high-temperature versions. Since these magnets are typically used in pairs or in multi-unit configurations, their connection to the lifting beams usually employs either a two-point or four-point suspension structure. The samples listed here all feature a two-point suspension design; please specify your exact requirements for beam attachment when placing an order. When lifting square and round billets, note that the outer casing is not impact-resistant and therefore these magnets cannot be used for neatly stacking materials.
Classification:
E-mail：hnyysg0730@163.com
Case Details
The MW12 series electromagnets feature a unique dual-wire winding magnetic circuit design, offering excellent heat dissipation, deep magnetic penetration, and the ability to pass through multiple air gaps. They are suitable for lifting bar stock, flat bars, angle steel, and other materials that are either unbound or only loosely bundled. These magnets can effectively address the issue of excessive deflection commonly encountered when lifting small round bars and threaded steel bars. Available in both ambient-temperature and high-temperature models. Since these magnets are typically used in pairs or in multi-unit configurations, their connection to the lifting beams usually employs either a two-point or four-point attachment structure. The samples shown here all feature a two-point attachment design; please specify your exact requirements for beam attachment when placing an order. When lifting square and round billets, these magnets should not be used for neatly arranged materials, as their housings are not impact-resistant.

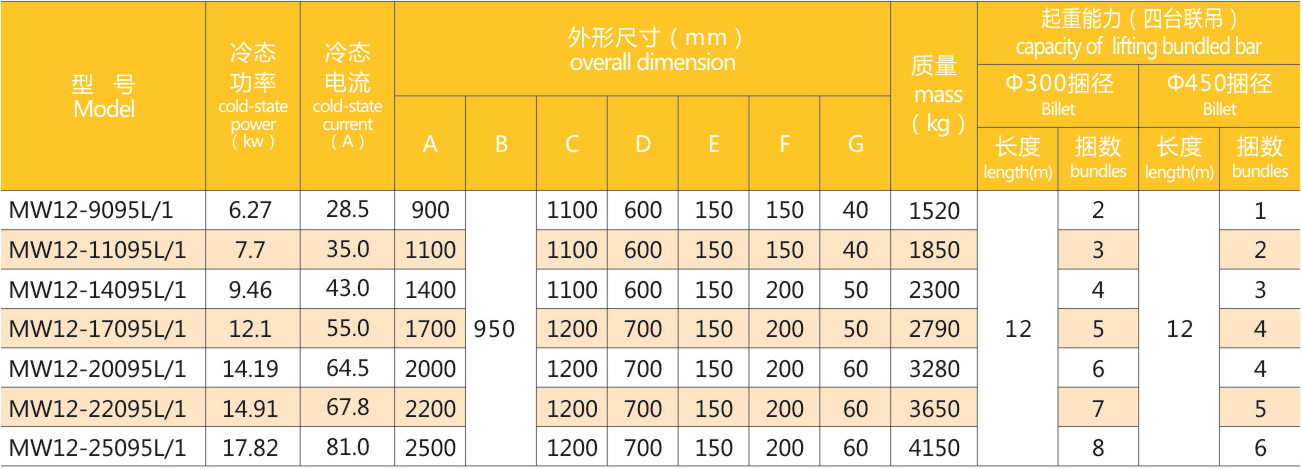

MW12-95 Normal Temperature Type
Main technical parameters (rated voltage DC-220V, duty cycle TD-60%) [for reference only]

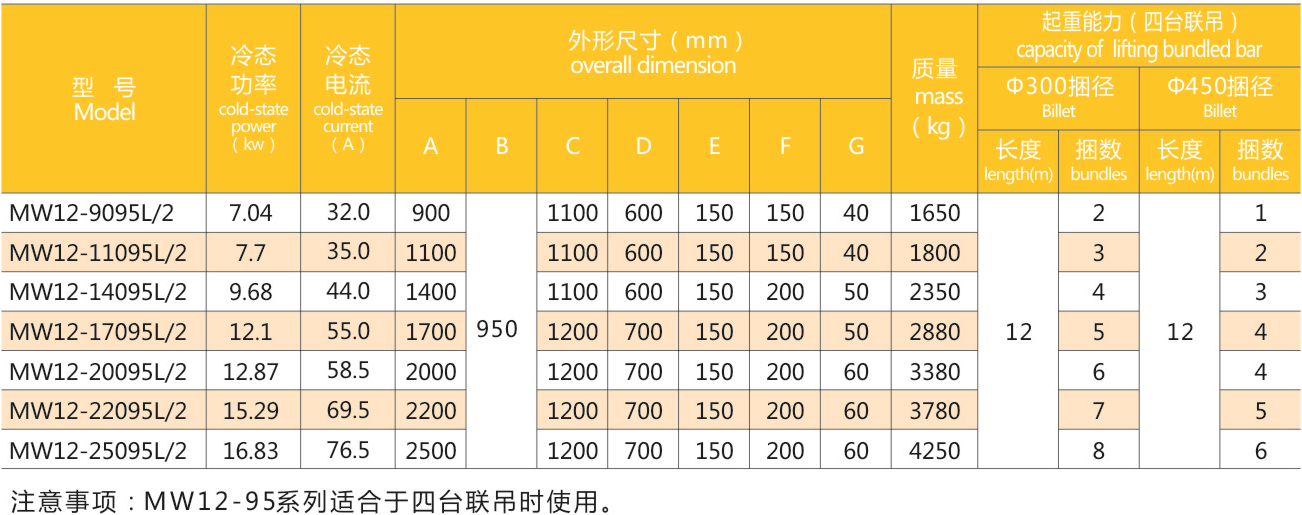

MW12-95 High-Temperature Type
Main technical parameters (rated voltage DC-220V, duty cycle TD-60%) [for reference only]

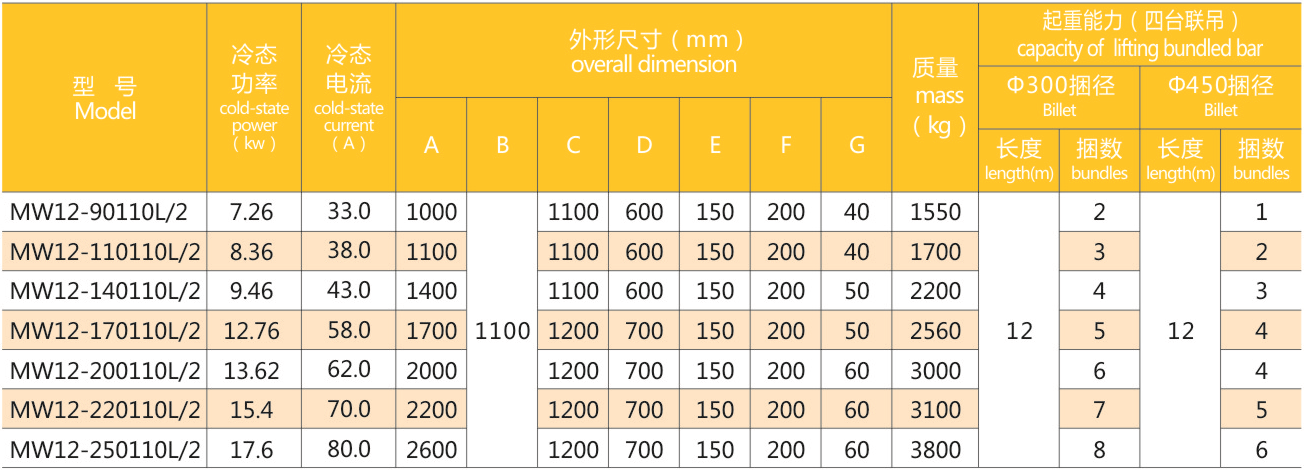

MW12-110 Normal Temperature Type
Main technical parameters (rated voltage DC-220V, duty cycle TD-60%) [for reference only]
MW12-110 High-Temperature Type
Main technical parameters (rated voltage DC-220V, duty cycle TD-60%) [for reference only]
